Four-station fitter workbench, technical school skills training platform, two-station 6-inch vice table 15220263323 Chen Gong

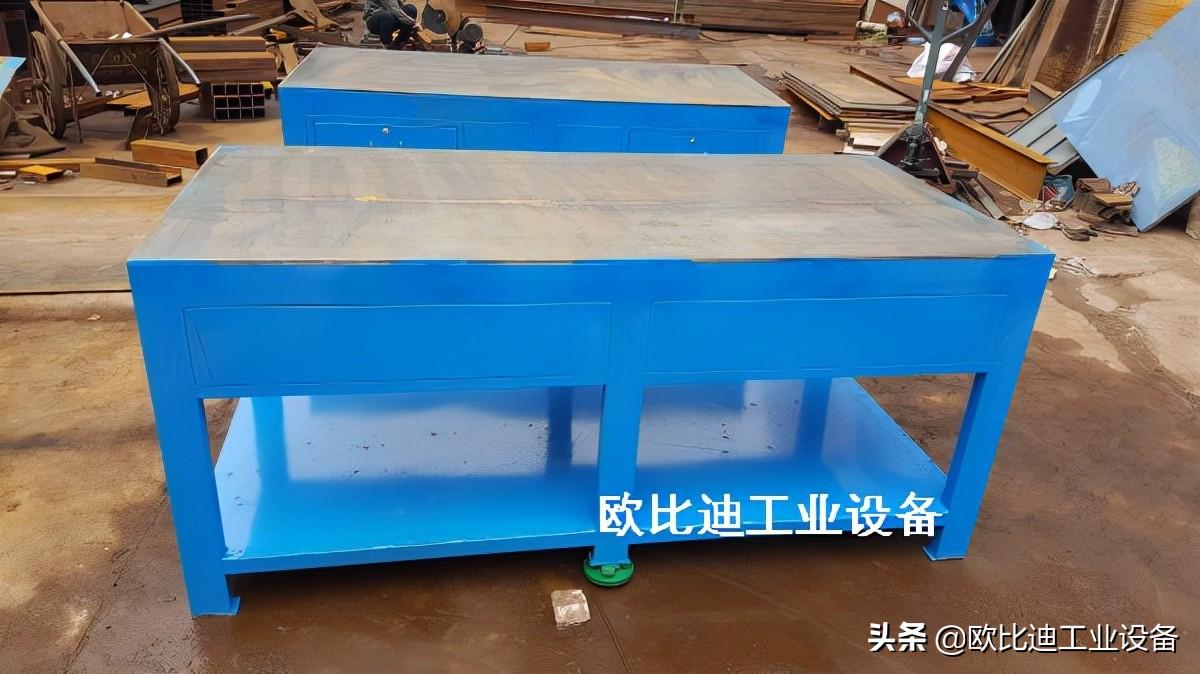

Steel table top:
A. The steel plate table below 14mm can be made by automatic electrostatic spraying process, or it can be directly welded by steel plate;
B. 15mm (including 15mm) or more steel plate tabletop, the table surface can be milled by machine tools, the table surface is more flat and smooth, high, the steel plate can be paved with black rubber skin (10/15/20), sound reduction and noise reduction, the steel plate table can be paved (5/10/15/20) PUC/bakelite board, which plays a role in protecting the mold in the production process;
【3】Steel plate table frame:
A. Table leg section 100*100*2.0/100*50*2.0mm
B. Crossbeam section 80*80*2.0/80*40*2.0mm,
C. Channel steel welding can be used (suitable for ultra-thick steel plate tabletop)
D. I-beam welding can be used (suitable for ultra-thick steel plate tabletop)
The overall load of the workbench is 1000~10000kg, and various steel table tops can be selected;

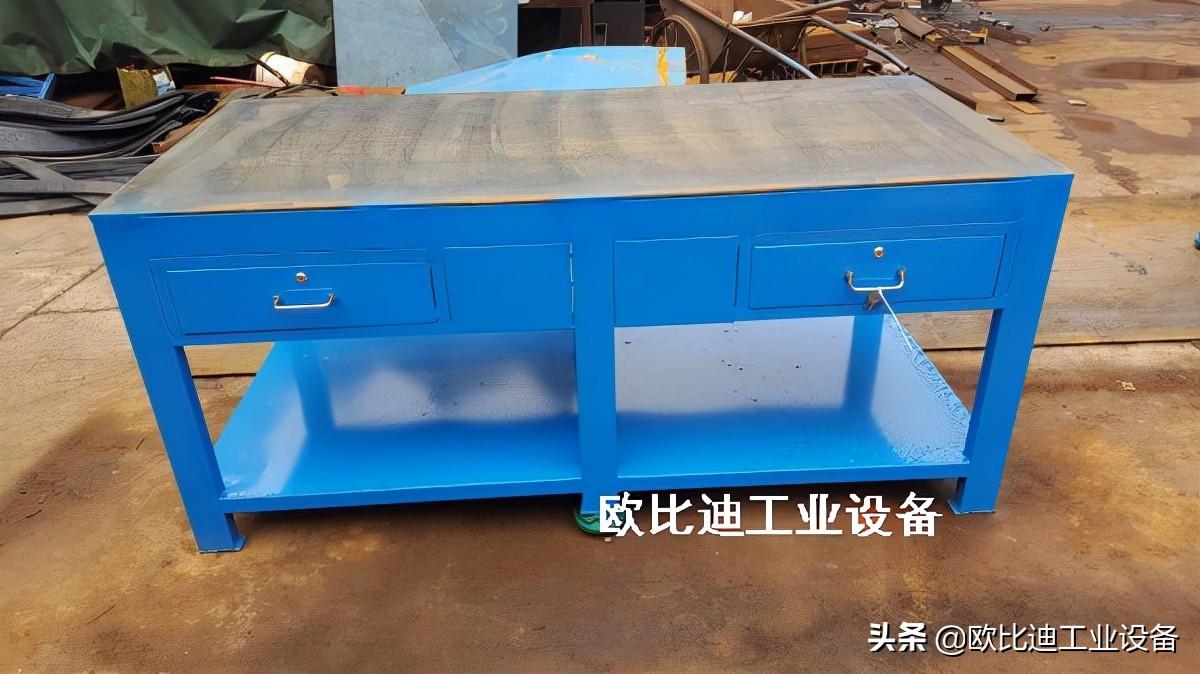

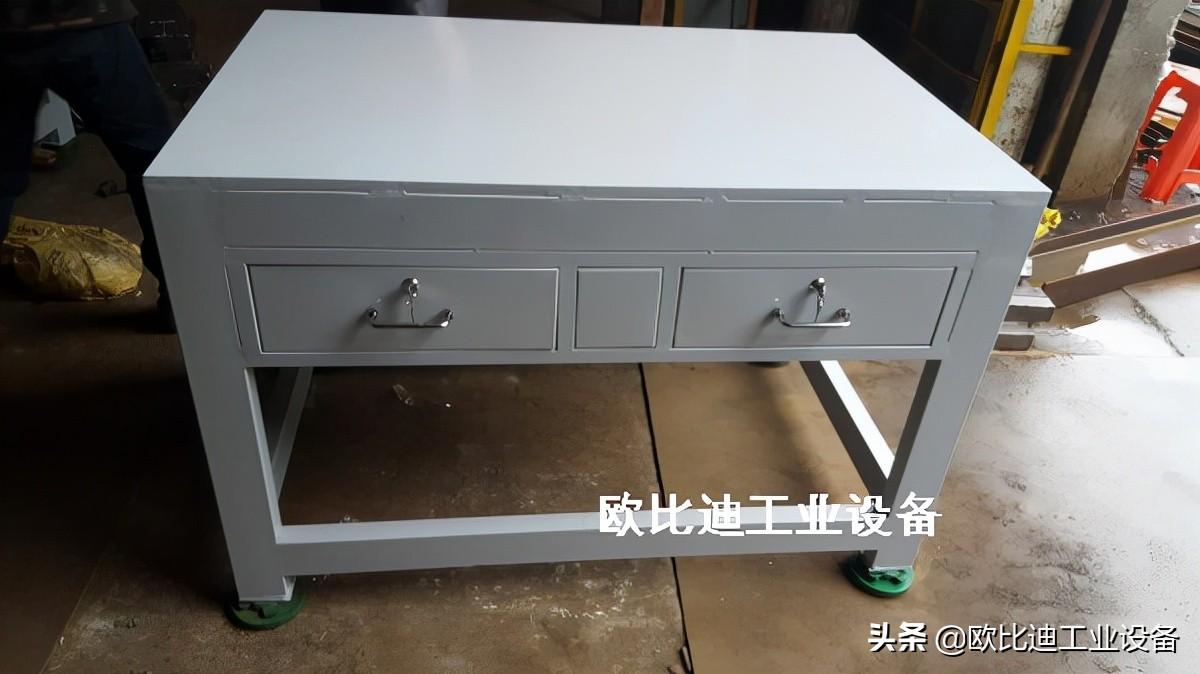

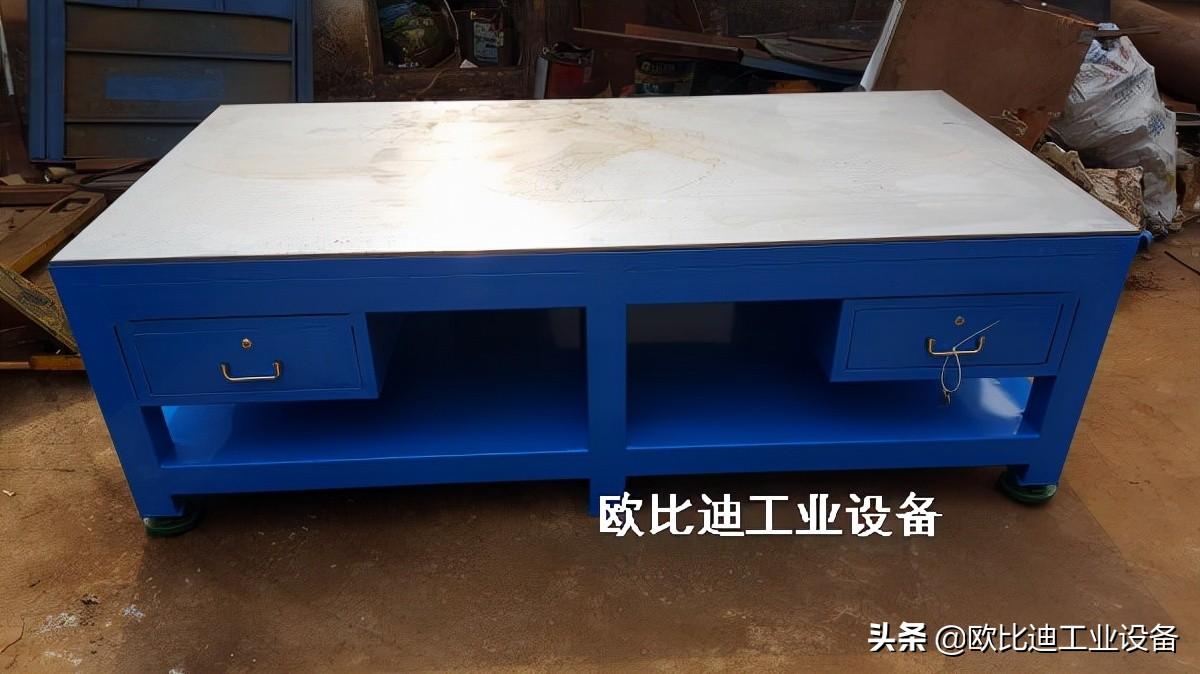

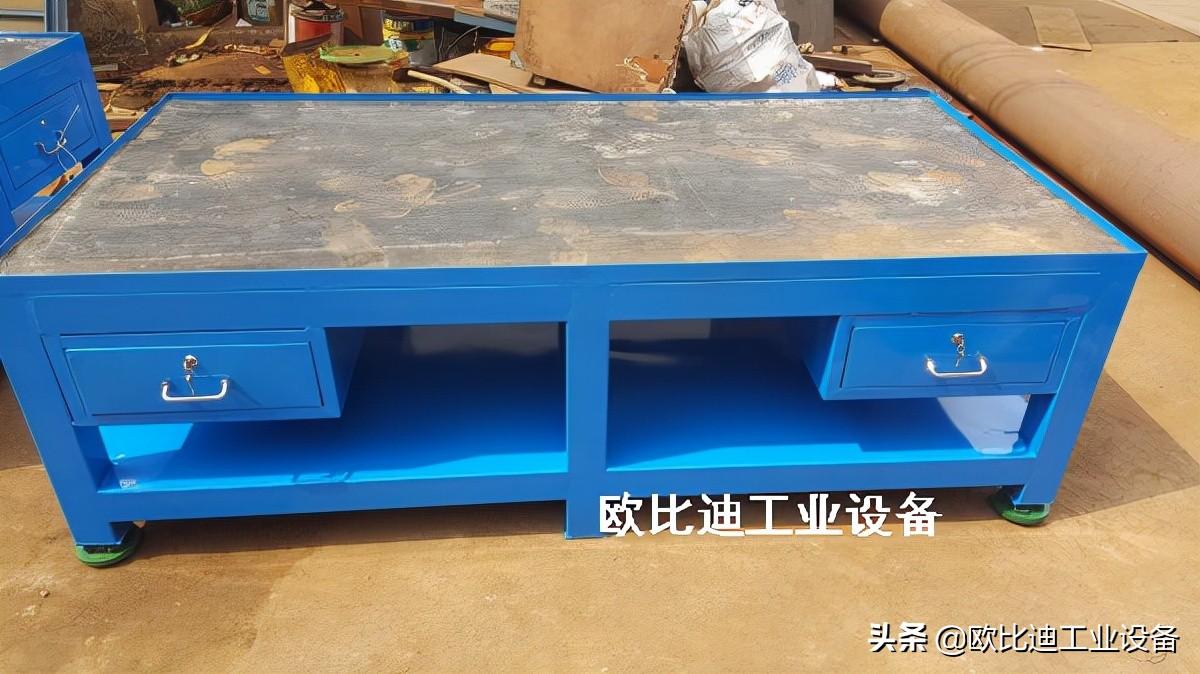

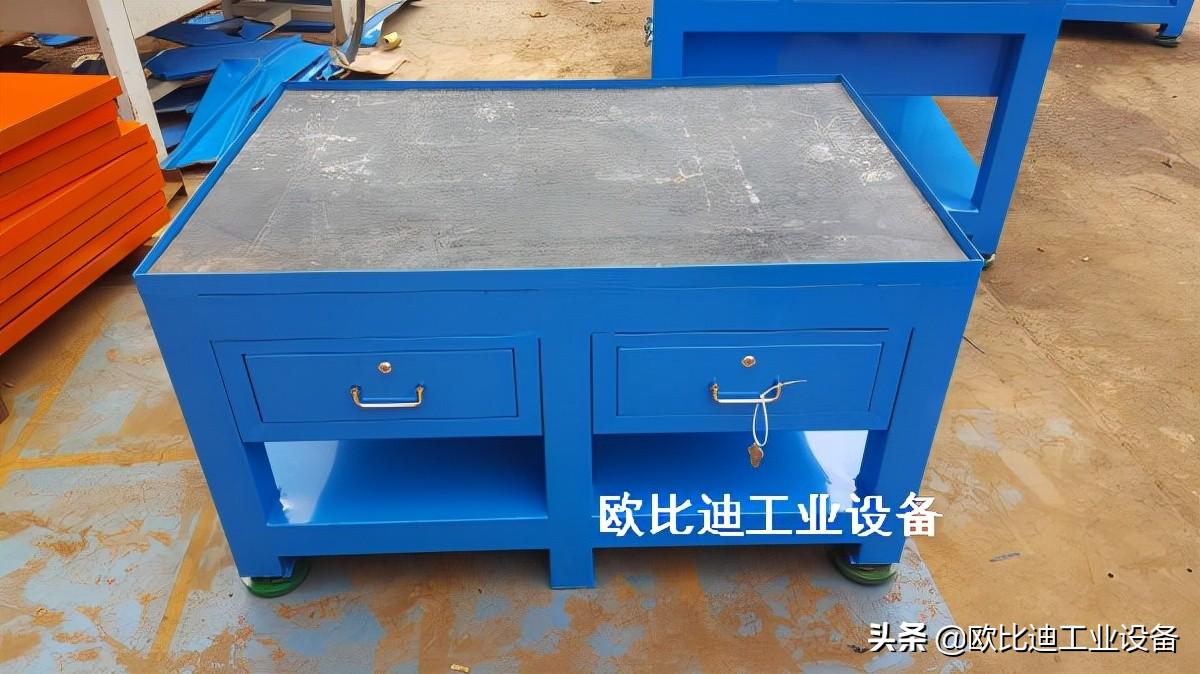

【4】Steel plate table drawer configuration:
A. Three-section guide rail: each drawer has a load of 30kg, and the drawer can be opened by 80%;
B. Single-section guide rail: each drawer has a load of 80kg, the drawer can be opened 90%, commonly used drawer material, the drawer can be configured with aluminum alloy handle/iron handle;
C. Double section guide rail: each drawer has a load of 150kg, and the drawer can be opened;
【5】Steel table foot cup:
It can be configured with metal adjustment foot cup / cast iron adjustment foot cup, which can properly adjust the height of the table to avoid shaking caused by uneven ground;
【6】Steel plate table color:
Made by automatic electrostatic spraying process, appearance, bright color, color commonly used blue, gray, green, can be as required;
【7】Vice (vice): The table can be equipped with 4-inch ~ 12-inch light vice and heavy vise according to requirements;

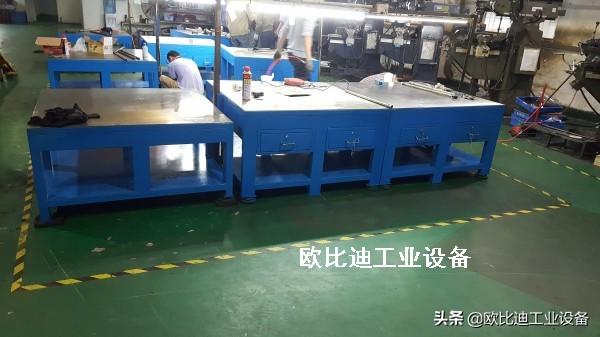

【8】Steel plate workbench is especially suitable for: mold factory, assembly factory, electronics factory, machinery factory, laboratory, testing unit, food factory, plastic factory, technical school, coal mine factory, subway construction, aircraft factory, etc. and other types of occasions.
