In 2019, I finally replaced the battery for the old mobile phone. I didn’t go to the last bus for the apple to change the battery. Because I bought the battery in 2017, I just didn’t change it, and I have never been changed. I have recently said that the old mobile phone iPhone6s Plus suddenly appeared After the charge is filled, it suddenly jumps to 20% for 30 minutes, and finally jumps to 1% power, detects 82% of the friend of the battery, and has not detected peak performance capacity.
It is purely entertaining for the Rabbit Rabbit Running, and the rabbit has a smuggling component. After a few days, it will plan to replace the battery after a few days, so you can share the battery. Let’s talk about some things that everyone can do with itself to replace the battery.
▲ Pre-changing battery: Similarly to the computer to detect the number of battles, it has been charged 723 times, the battery life is 65%, and the battery health of the iOS 12 system is quite large. In accordance with the precision, the PP assistant will be more than iOS 12 The system comes with a lot of detection, because the battery is weak, and the battery is weak.

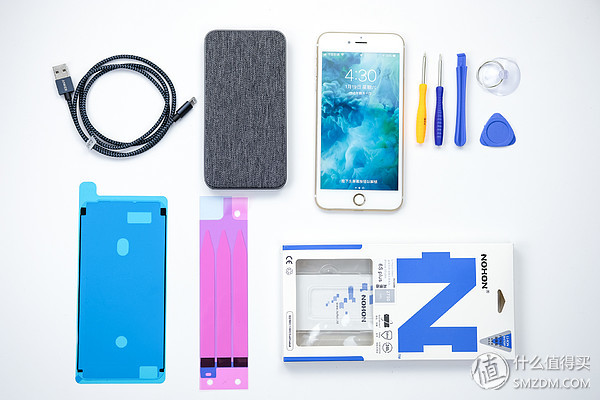

Change battery preparation:
1. Online self-purchasing replacement battery, don’t talk about the battery purchase, the cheap, the iphone original battery is far away, all is Ray! There are also some ultra IPHONE standard capacity batteries. If funds are in place, you can consider starting. After all, you will also have more than ten yuan, try to choose a big brand, buy battery easy, you can replace it, change the battery and change For 1 or 2 years, no one wants to just change for half a year and continue to disassemble.

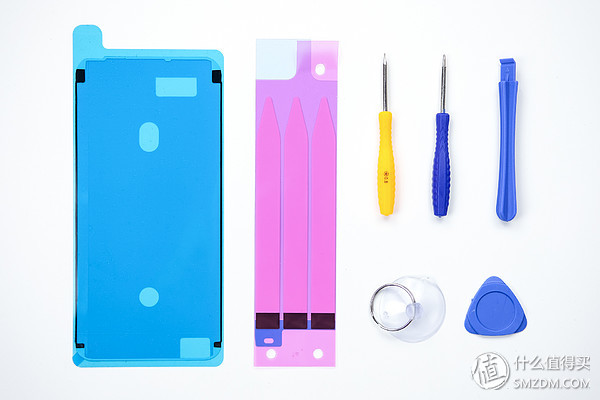

2. Tool,With magnetic screwdriver! Why not buy a battery with a battery? Because those tools are not magnetic, it is very inconvenient for mobile phone small screws and tightness! Another important tool is:Sharp tweezersIt can be used to pull the battery glue, even if it is broken, it is also possible to raise a little battery to find a broken battery glue to continue pulling.Suction cup，附送的Suction cup都比较小，对于iPhone6s开始使用屏框防水胶后，移除屏幕比较费劲吧，如果大Suction cup就比较容易拔起屏幕，类似家里有墙壁吸附肥皂盒的话，可以直接用那种大Suction cup会比送的好用很多。
3. Plan frame waterproof glue and battery glue.
4. The hair dryer is used to heat the softening battery.
Check one phone before replacement, see if it is normal to manipulate whether it is normal, similar buttons, fingerprint identification, photo, flash, etc., OK does not have problems, ready to start replacement.
▲Important: Remember before disassembling, shut down! Shut down! Shut down! Don’t remove the machine, it is easy to get what the motherboard is.Many disassemble did not say: Wash your hands! Yes, washing hands, and washing hands can reduce the chance of electrostatic breakdown circuit board. If there is anti-static glove, take a glove, no hand washing.
▲洗手后，就使用With magnetic screwdriver把iPhone充电口两旁的螺丝卸下，拆卸这2个螺丝没有任何困难，换上匹配的刀头就卸了。卸下的螺丝记得放好，不要乱放，毕竟它很小！
▲先用电吹风热风挡吹热手机边框，大约吹2到3分钟，如果天气冷的话就多吹一下。在吹热前先把Suction cup安装好，吸附在手机home键处，不要吸在前置摄像头听筒处，因为那里下面有排线！！！我使用附送的Suction cup很难吸拉起屏幕总成，因为Suction cup太小了！后来我改用肥皂盒上的大Suction cup，吹热后马上拉起，看见有缝隙后，就用附送的拆机三角片工具慢慢划开左右下三面，Remember not to pull the screen into 90 ° here, because this will easily damage the cable!
▲One hand holds the screen assembly, don’t erect 90 °!Another hand disassembles the 2 screws here using a screwdriver, remember the screws, because their length is different! ! !

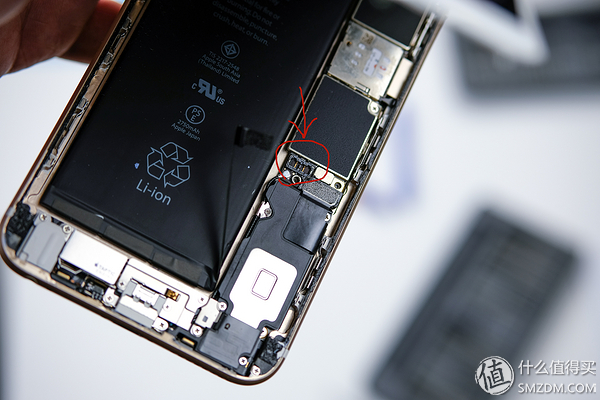

▲ After removing the metal baffle of the battery card, revealing the battery snap, disassemble the snap on the left, that is the battery snap! Until out, because this type of snap-in is locked in straight push, no swatches.
Need to pay attention: Be sure to remove the battery buckle to prevent accidental boot tap!
▲ Disassemble the screen assembly, remove the 5 screws from the upper map, remember the screw order, because they are also different! ! ! After removing the screw, remove the metal baffle, you can see the three cable cards, the three cable bursts are in the order of installation, only to pull 1 to pumping 2, then pumping 3, separately demolish I.e. After changing the battery, the line sequence of the installation screen assembly is returned, first 3, then 2, last 1.
Special attention: After the snap is installed, there will be obvious “” when the push is pushed, and the snap position must be calm, otherwise the screen cannot be used, the same battery buckle is also the same!

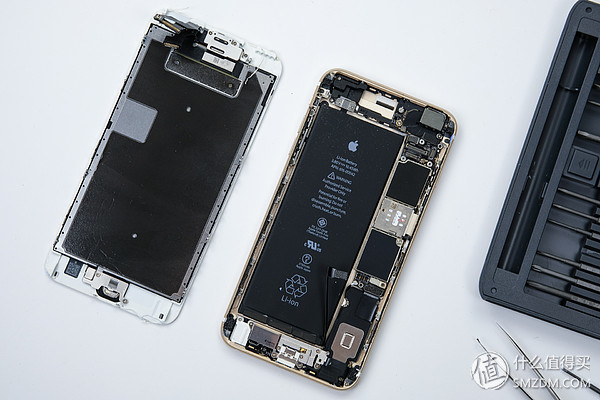

▲ A total of 9 screws need to be disassembled, you can successfully separate the screen assembly and the back shell, and then clean the screen box waterproof.
▲ Because there is no screen assembly, you can easily clean the residual screen waterproof glue, use small tweezers to scrape, because the waterproof glue is very viscous, so slowly, the same is on the screen assembly There is also a residue, and it needs to be cleaned. After the cleaning is complete, you can start replacing the battery.

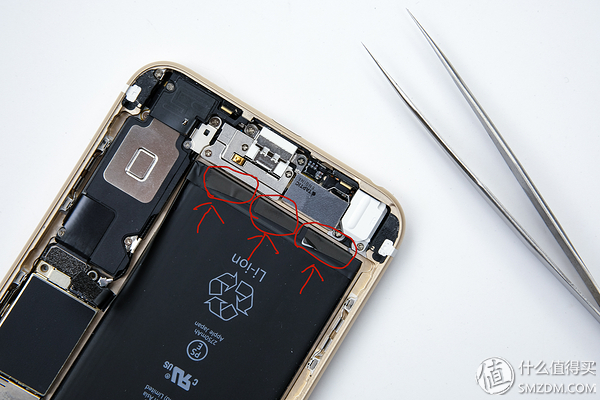

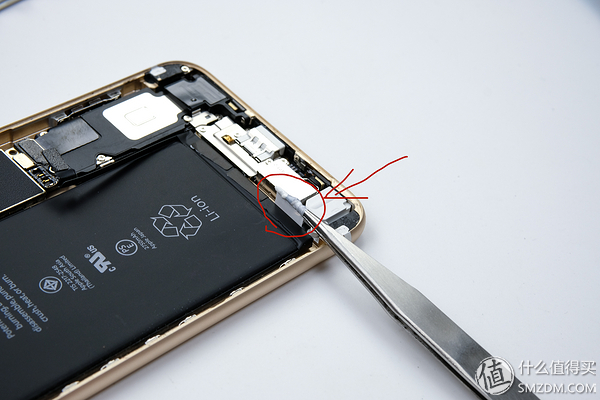

▲ Revealing the black film, you can see the white battery adhesive, slowly scrape, use the small tweezers flat, use the electric hair in the back shell Apple logo, blow the battery position, about 2 minutes On the left and right, you can start the volume of the battery adhesive. Similar to the roll, slow rolls, side rolls, many people say that it is easy to pull out because there is no electric blown heating, the battery is soft after heating, and it will be soft, it is not easy to pull. Slowly roll to completely pulled out the battery glue, iPhone6S Plus is a total of 3 battery glue, if suddenly pull is not tight, at this time, it is slightly using the tool to gently and lift a little bit of battery. Can you see battery glue, you can Use a small tweezers to clamping a little slowly pulling out.
Pull battery glue, especially need to pay attention, remember to heat, it can be easily pulled out after heating, and it is not easy to break!

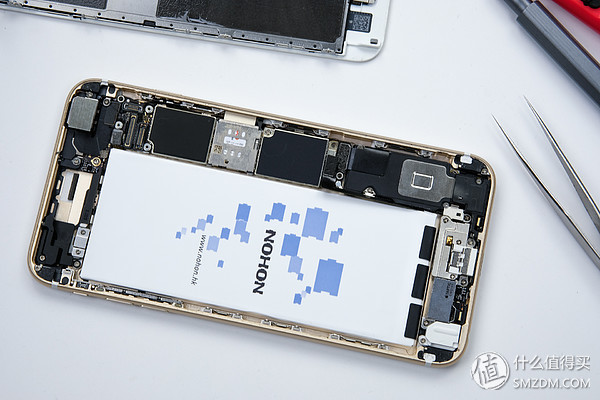

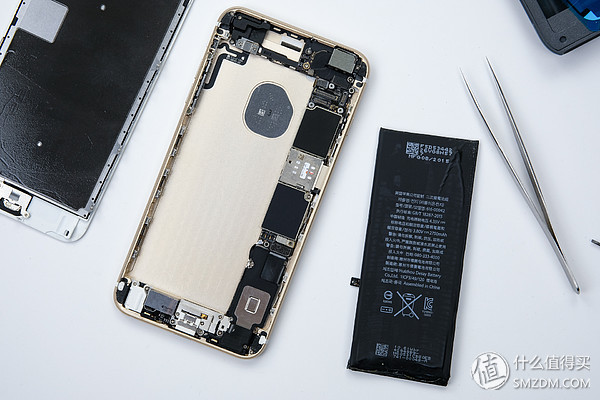

▲ There is nothing difficult to pull the battery adhesive, and you can remove the battery directly after pulling, and there is no residual battery glue, it is basically OK. Take a closer look, the original battery is 2015, the Deyi battery of Huizhou City, this iPhone6S Plus mobile phone, I have passed in 15 years, just bought it, I used it for more than 4 years, usually more than 4 years Cherish the phone, so the color is very new.

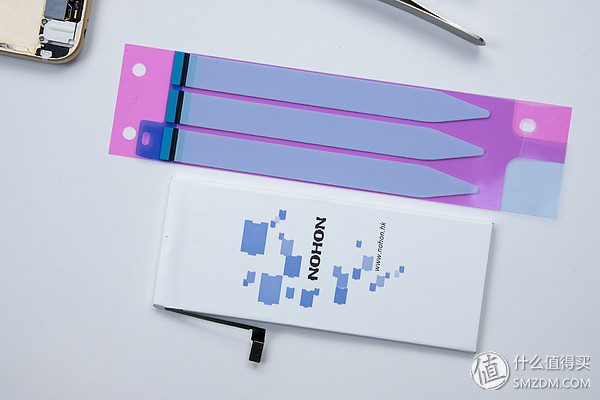

▲ Give the new battery to the battery adhesive, the order in which the battery glue must be correct, the tip of the battery glue is on the tail of the battery. My new battery is purchased in February 2017, 2750mAh, I have been almost 2 years in 2019, so the residual power is almost ok, so I still need to charge for a while after installation. If you buy a new battery for a long time, you can’t turn it on, you can’t turn it on, and you have no power.
▲ When the battery is applied, pay attention to it, it is necessary to care with the back of the battery, can’t post it and tear down, and must be completed once! It is also necessary to show the front of the battery glue plane to the front of the battery, which is convenient to remove the battery when the battery is replaced.
▲ Sticker waterproof glue, waterproof glue prices are very cheap, about 2 yuan, if not the stars, purchase, you can buy two pieces, not expensive. Before the post, you must pay attention to the inverse direction because the waterproof glue is different, and the grooves on the back shell must be corresponding to the groove.
▲ After comparing the front and back, you will take a little bit of one side and slowly bind it. Don’t remove the film immediately, first press the tool to press whether the waterproof glue is stacked, otherwise it is easy to bring the waterproof rubber deformation when it is torn open! When it is determined, then the film is removed.
Install waterproof glue should be aware of: Do not install the screen assembly, first install the battery, then the screen is waterproof, then install the screen assembly!
▲ When the screen is waterproof, the screen assembly will be installed. When installing the screen assembly, first in the order 3, 2, 1 put the three cables, don’t get the screw, this time the battery is buckled. Lightup, test the screen manipulation is normal, if it is ok, shut down, continue to install 2 metal plates back. Finally, the screen assembly will be pressed down to the upper screen waterproof glue to complete the replacement battery step.
Installation Note: When you go back, it is best to wash your hand again, remove the electrostatic reputation. When testing the screen, I remember not to dedup the screen assembly, or the screen box waterproof will be tightened! There is also a screw must be filed in order, because the length is different!

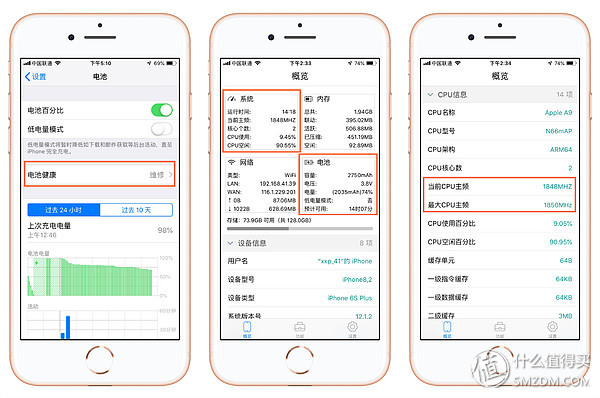

▲ Using software detection, finally the battery is normal, the battery capacity is the same as 2750mAh nominally nominally, and the CPU does not have a down-speed, keeping around 1848MHz, querying the charging in the PP Assistant 0, the battery life is 100%. But carefully discovered battery health in iOS 12 system: repair, and the PP assistant machine reminds 1 warning.

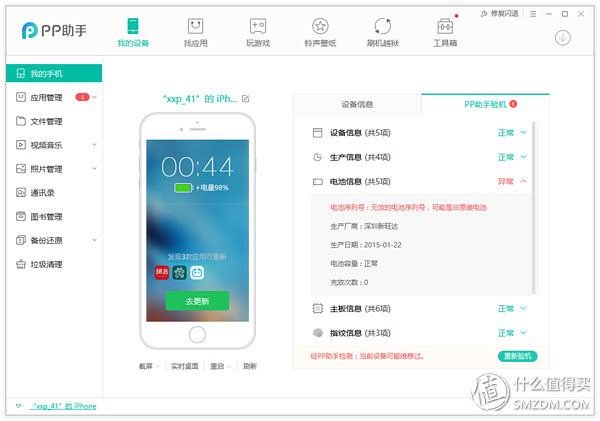

▲ PP assistant machine reminder is that the battery serial number is an invalid battery because the replacement is caused by non-Apple original batteries, but does not affect the use of mobile phone batteries. At the same time, the battery health display is displayed in the iOS 12 system: maintenance, the same is due to this reason.
The above is some places that you need to pay attention to the battery. If you really have a weak ability, you will go outside the mobile phone store to replace it, and the hand fee may be 30 to 50 yuan. If it is a full-box battery, you must Remember to put them on the screen box waterproof glue! From the iPhone6S, there is a screen waterproof glue. Many mobile phone stores outside the mobile store flickers are omitted directly from the screen to waterproof, resulting in the later mobile phone screen loans and so on. Briefly, the replacement battery is completely no difficulty. I have seen some picture tutorials before, but I found that I didn’t mention some fatal details. I just wrote the old mobile phone battery. So I wrote this tutorial. Improve those fatal lethal details! I like my article remember to pay attention to me, share my life for everyone next time.
