Plate making basics|Summary of the use of multi-function curve rulers

Core tips: For friends who like manual patterning, the use of multi-functional curve rulers must be mastered, so that you can draw a smooth and beautiful paper pattern.

For friends who like to type by hand, the use of the multi-function curve ruler must be mastered, so that you can draw a smooth and beautiful paper pattern. Today, the editor will recommend a multi-functional curve ruler written by Xiaoyu according to my own habits, hoping to solve everyone’s questions.

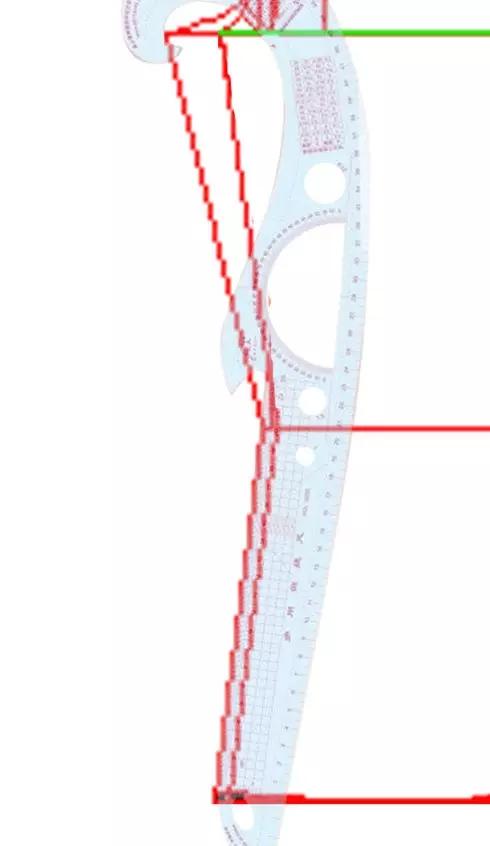

1. First use the ruler to draw the structural line according to the size first, and then start to draw the neckline, lean the curve ruler between the two vertical lines, find out a most suitable arc, in the same way we can use the curve ruler to draw the sleeve hole: as shown in the figure

Note that when drawing, the straight line does not use the curve. Mainly use the curve ruler when drawing some curves, and when using the curve ruler, you must first draw the structural line.

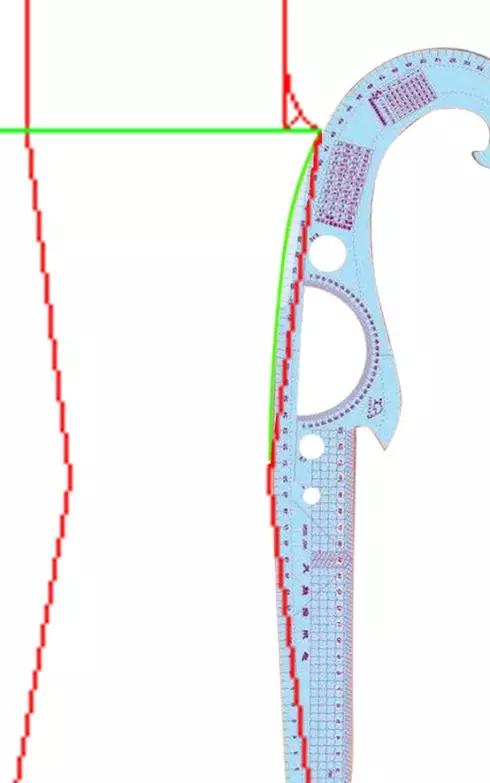

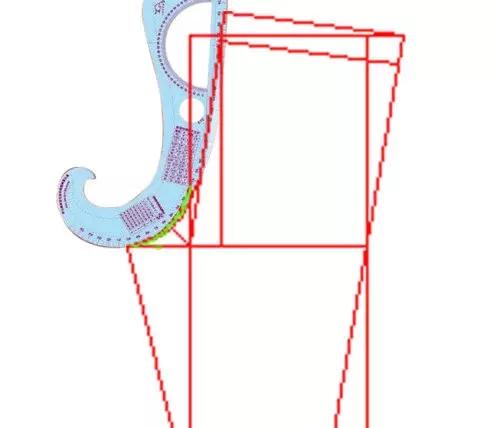

2. Many people feel that when making pants, the curved ruler has no effect. In fact, it is also useful when making pants. For example, if we draw the curve of the trouser file, first draw the structural line. Then put the curve ruler on it, find the most suitable curve, you see, is it also convenient to make pants? And when we draw the back piece of the pants, we usually push the front piece of the already cut pants with a 1CM curve, which is very convenient to draw the back piece. In addition to curve pushing, there are also straight lines that can also be pushed. (This is also suitable for handicrafts)

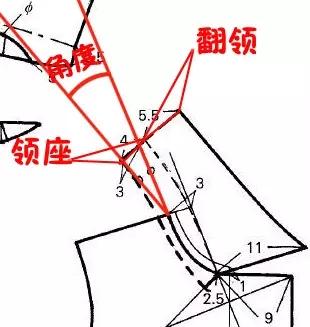

3. For us beginners, the lapel is almost too complicated. According to the drawing steps, we made a mess of ourselves, but by borrowing the multi-function curve ruler, we only need to determine the width of the collar and the width of the lapel of the clothes we want to make, and then compare the collar loose scale on the curve ruler, and we can immediately determine this angle. According to this angle, we can save a lot of calculations.

Other functional applications

Protractor: Professional protractor, its special feature is that the “0” degree starting point is on both sides and three ends of the balance line of the protractor. As long as the center point is determined on the straight line of the measured object, the ruler body is moved, and the required degree is fixed on the straight line, it can be drawn, and can be surveyed/painted in both directions, and there are two 45-degree positioning lines at the same time. Changed originality brings professional practicality.

15 to X degree comparison table: This table is a common data conversion role in clothing structure drawing. For example, if the shoulder tilt treatment takes 15:6 as an example, the slope of the small shoulder must be manipulated by two numbers. This table replaces the technical data described above. When manipulating, only 6 numbers are found in the table, and the protractor can be used to directly draw the slope of the small shoulder, in one step. In the provincial road treatment, the relevant slope can play a fast and precise role. This table and the protractor are configured on the ruler at the same time, which is ready to use.

Matching loose scale: It is the technical parameter of the collar overturning, and it is also the h+h used in the original collar. The method of and 2 (h-h) is replaced by a conversion from trigonometric functions, which is intuitive to operate, and this table and protractor are configured on the ruler at the same time.

Surveying and mapping center hole: There is a small hole in the starting point of each measuring tool, which is the center hole of the manipulation area for arc making, arc measurement, and equal amount of provincial road transfer.

Curve: is an indispensable tool in clothing structure drawing, this curve function (including proportion curve), in the current special and non-special curve tools, to deploy, combine, through the clothing curve coefficient and geometric processing of professional curve system, in the clothing curve drawing link and curve equal transfer and other functions have played a certain role.
